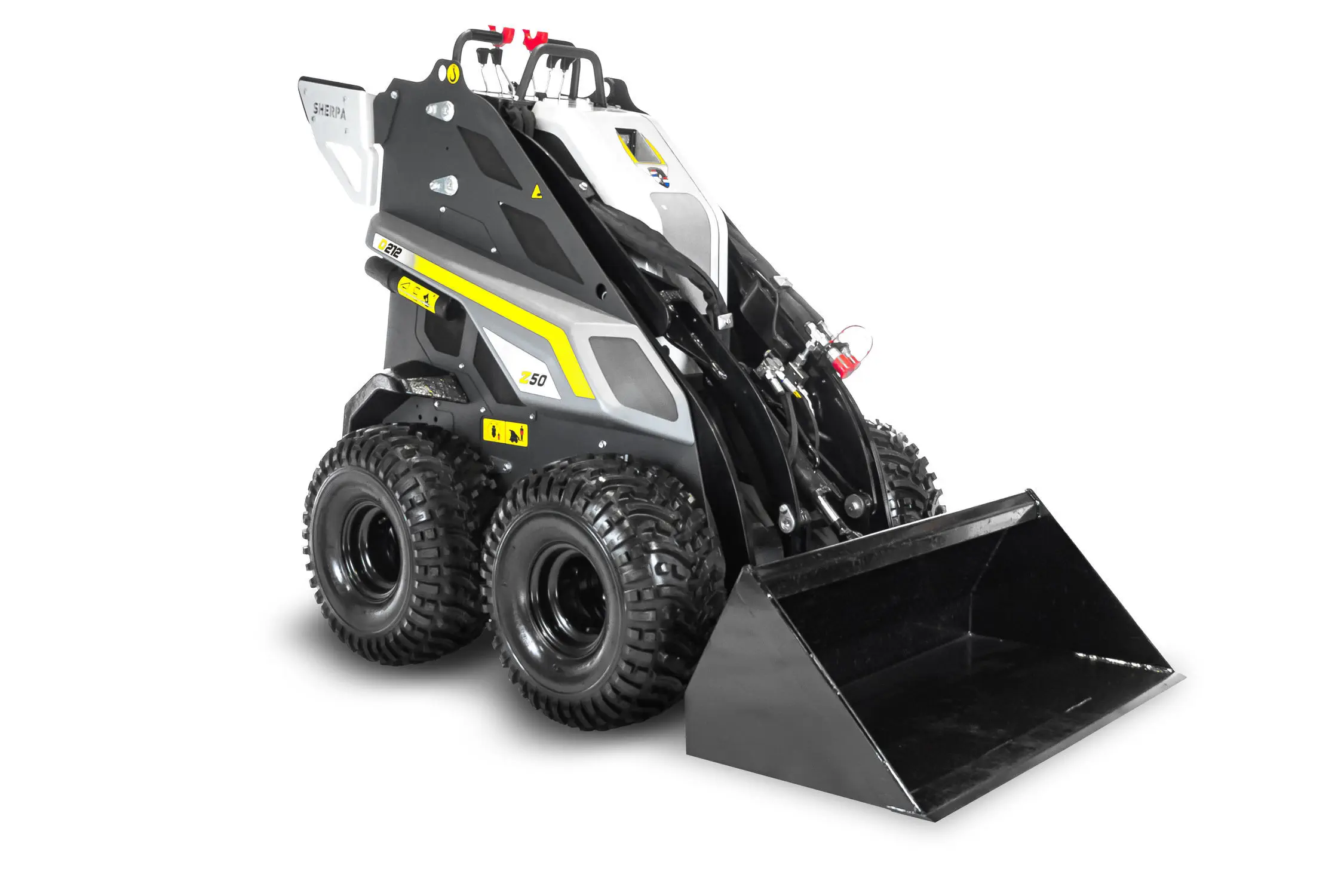

Cargadora con neumáticos SHERPA Z50
Soft Edge collection
Hurry and get discounts up to 20% Read more
Características
- Tipo
- con neumáticos, con orugas
- Otras características
- compacta
- Potencia del motor
- 25 ch
(25 hp)
$29,600.00
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
Product details
Made possible by exploring innovative molded plywood techniques, Iskos-Berlin’s Soft Edge Chair blends strong curves with extreme lightness to create a three-dimensionality not usually possible with 2-D plywood.
Description
Descripción
La SHERPA Z50 es el modelo más potente de la serie Z de minicargadoras compactas de dirección deslizante. Equipada con un motor diésel Kubota D7902 (18 kW / 25 CV) y un ancla de transporte compacta de 1140 mm, está diseñada para trabajos exigentes en la industria, la construcción y la jardinería. A partir del modelo del año 2025, la Z50 también está disponible con neumáticos de caucho como alternativa a los neumáticos estándar (lo que afecta a las especificaciones técnicas).
Características principales
- El modelo más potente de la serie Z.
- Motor diésel Kubota D7902 — 18 kW / 25 CV
- Anchura compacta: 1140 mm para acceso a espacios reducidos
- Transmisión hidrostática entre 4 motores hidráulicos en la carretera
- Disponible para todo tipo de condiciones climáticas a partir de 2025 (especificaciones modificadas).
Descargas
Folleto (PDF); Technical Specifications (PDF).
Dimensions (mm)
Max height. Horquillas para palets: 2051
Altura max. from unloading: 1700
Angle of the cuchara at base: 28º
Angle of view of the cuchara: 35º
Distance from the wheel to the point of the cuchara: 50
Height of the surface: 188
Distance between wheels: 657
Longitud of the machine (placa apoyo plegada): 1519 (1345)
Length of machine with blade: 2075
Angle of approach: 23.5º
Altura de machine: 1495
Maximum total altitude: 2590
Ancho: 1140
Radio de giro: 1664
Radio de giro con pala (112 cm): 2208
Peso en marche de orden: 862 kg (con standard tires)
Technical data
Motor – Manufacturer: Kubota; Type: D7902; Power: 18 kW / 25 HP; Max. RPM: 3600 1/min; RPM ajustadas: 3000 1/min; Número de cilindros: 3; Sistema de refrigeración: refrigerado por líquido; Combustible: Diésel; Capacidad de almacenamiento de combustible: 15 l
Sistema eléctrico – Voltaje: 24 V; Capacidad de la batería: 45 Ah
Velocidad – Velocidad máxima: 0–6 km/h (variación continua)
Rendimiento – Potencia: 726 kg; Potencia de carga/tracción: 515 kg; Propulsión e hidráulica de trabajo: 42 l/min a 190 bar; Capacidad de almacenamiento hidráulico: 42 l
Neumáticos – estándar: 20×11.00-8 de banda ancha
Sistema de tracción – Hidrostática mediante 4 motores hidráulicos de carretera
Frenos – Freno de servicio: Hidrostático mediante 4 motores hidráulicos de carretera
Dirección – Dirección deslizante
Especificaciones clave
- Modelo: SHERPA Z50
- Motor: Kubota D7902, 18 kW / 25 CV, 3 cilindros, refrigerado por líquido
- Anchura: 1140 mm
- Peso en condiciones de funcionamiento: 862 kg (neumáticos estándar)
- Capacidad de almacenamiento de combustible: 15 l
- Capacidad de depósito hidráulico: 42 l
- Ancho máximo de carga: 1700 mm
- Velocidad máxima: 0–6 km/h (variación continua)
- Tracción: Hidrostática mediante 4 motores hidráulicos de carretera
- Neumáticos (estándar): 20×11.00-8
- Disponible para clima invernal a partir de 2025 (sujeto a especificaciones).
